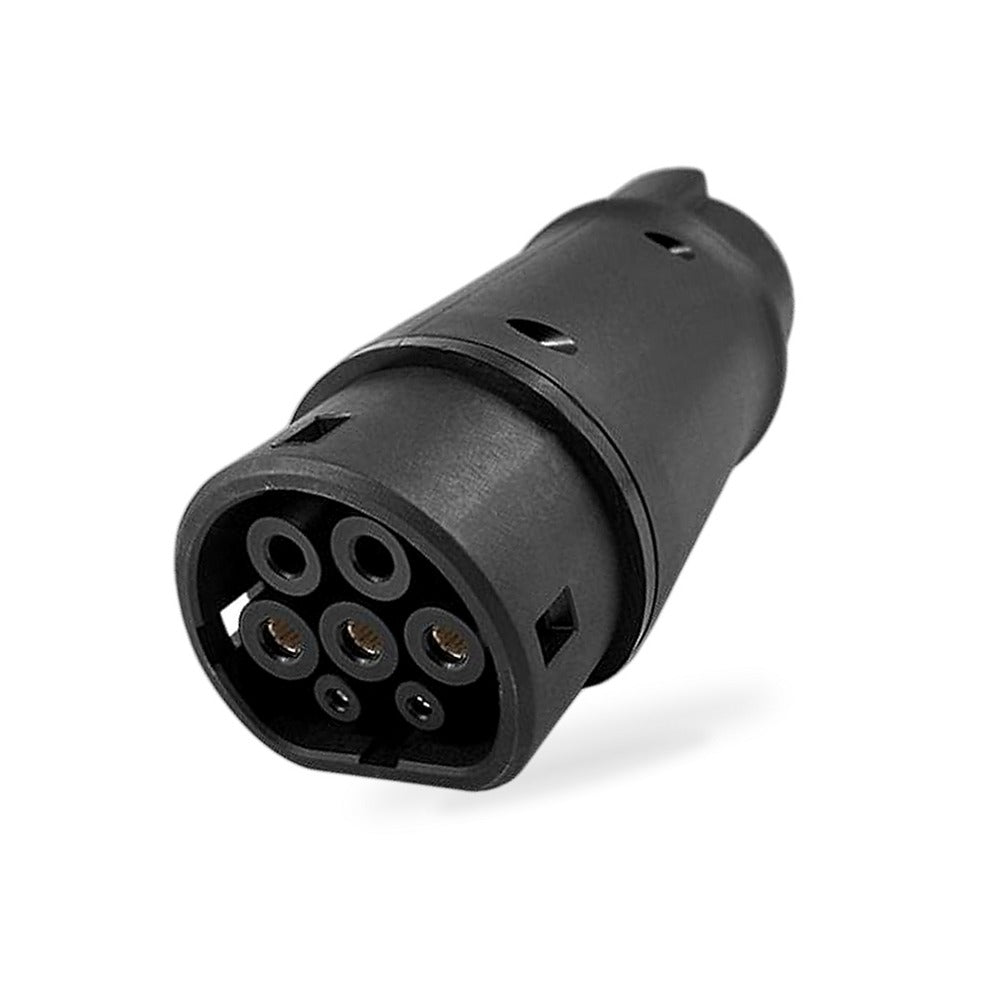

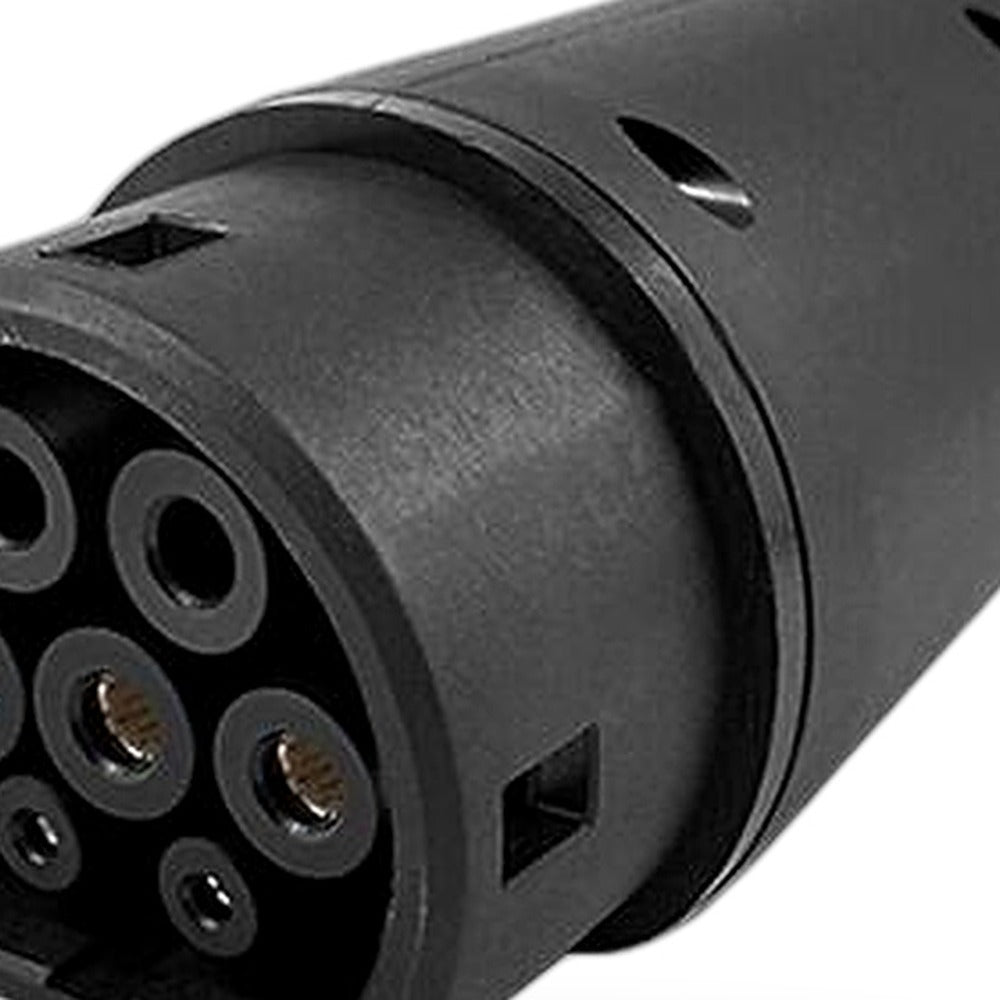

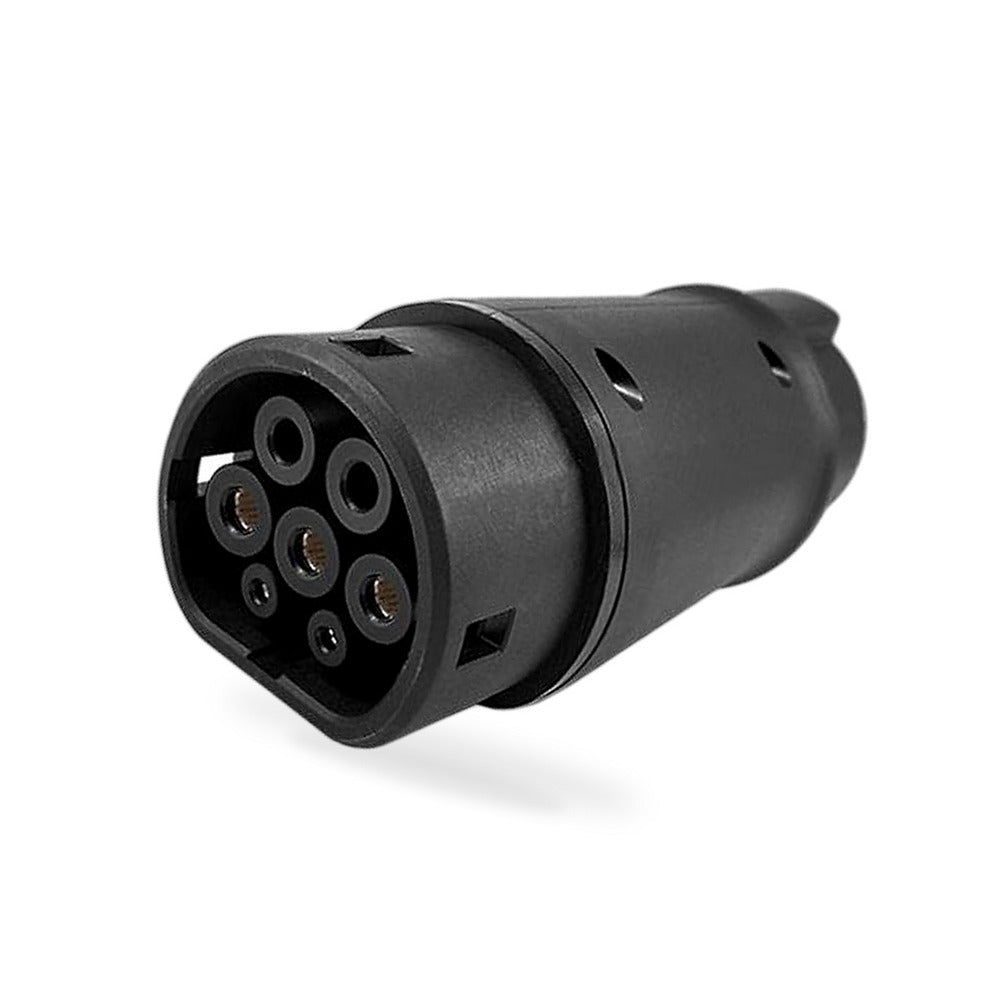

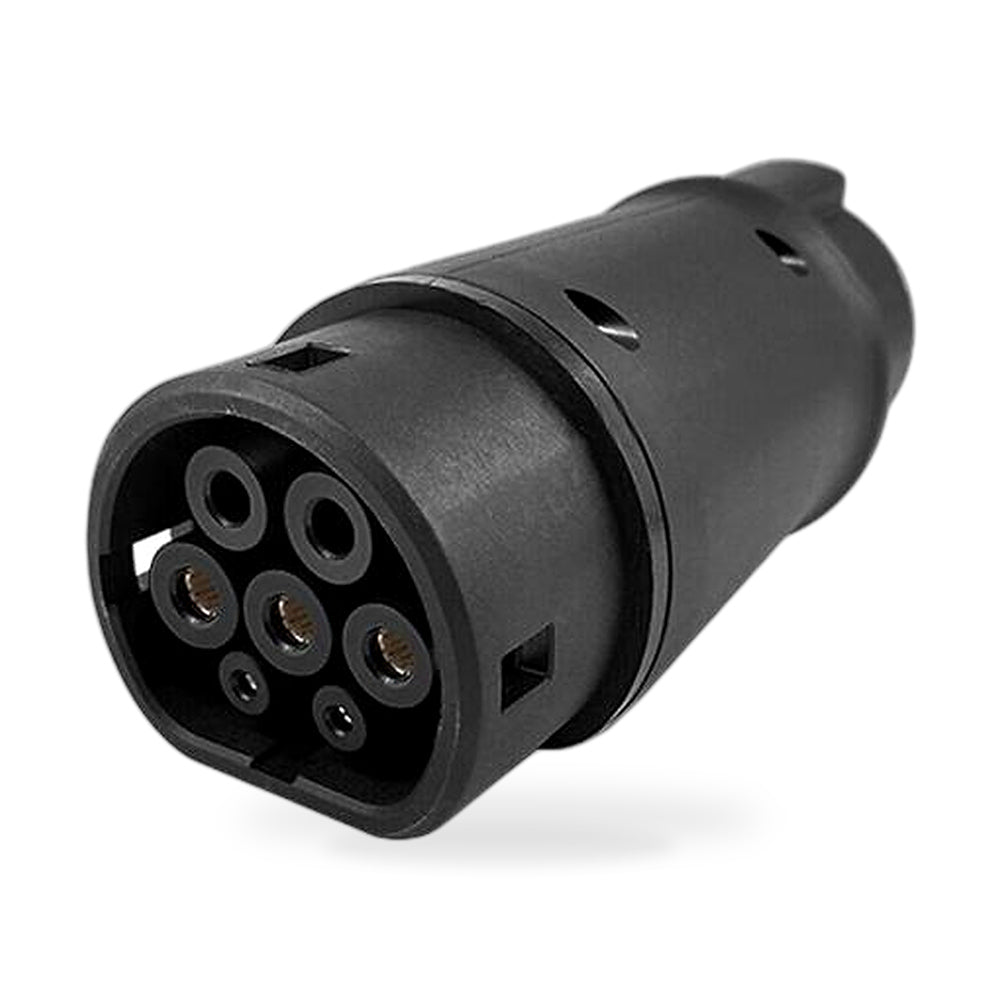

EVSE EV Adaptor 32A J1772 Type 1 to Type 2 Plug Suitable for Electric Cars

Description

Adapter of electric vehicle converts your charger from American standard to European standard

It is very suitable for families with 2 electric vehicles or plug-in hybrid vehicles with different connector types.

Comply with SAE J1772 standard

Beautiful appearance, with protective cover, support front installation

The pin head is designed with safety insulation to prevent accidental direct contact with human hands

Excellent protection , the protection level reaches IP54

We recommend to use the following steps:

1.Plug in the Type 1 end of the adapter to the charging cable

2.Plug in the Type 2 end of the adapter to the car's charging socket

3.After the adapter has clicked in place you are ready for the charge

Don't forget to activate the charging station

When you finish with the charge, disconnect the vehicle side first and then the charging station side. Remove the adapter from the charging station when in use.

Specifications

Brand: MAXCOOL

Type: American change European Adaptor

Warranty: 1 year

Protection grade: IP 54

Shell material: thermoplastic

Current: 32A/7.2KW/single-phase

Working temperature: - 30 ℃~+50 ℃

Rated voltage: 250V AC

Fire rating of plastic enclosure: UL94 V - 0

Product insertion force: 80 N

Charger Side Connection: SAE J1772 Type 1 Socket

Vehicle Side Connection: IEC-62196-2 Type 2 Female Plug

Package include:

1 x American change European Adaptor
